nVent Hoffman Click-In Technology For Enclosures

Posted on: 09/04/2021, 15:15

Back to all articles
















Time is money, as the saying goes, and when combining floor standing enclosures this can be a time consuming task. So how about using a system which doesn’t require any installation tools, can be carried out by one person and reduces assembly time by at least 14 minutes for each two bayed enclosures. Now that’s got to be worth investigating…

Delivering fast installation baying solutions to panel builders, nVent Hoffman’s Click-In technology provides quick, simple assembly with the assurance of extensive strict testing according to IEC62208 standard, to ensure loading and lifting capability and resistance to vibration.

Positioned the profile in the wrong place? Not a problem. With a quick quarter turn and an unclip the profile can be remounted within seconds.

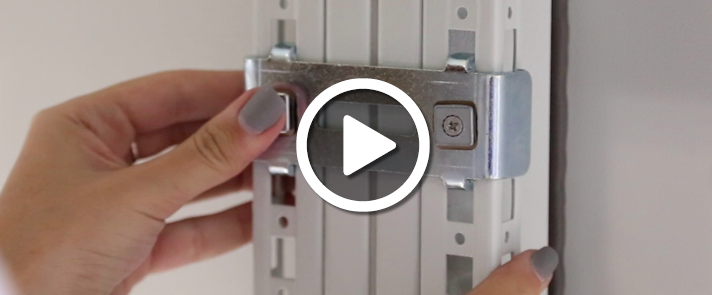

Watch how the Click-In system compares to conventional baying accessories -














Helping Panel Builders Reduce Their Costs



Due to tools not being required for carrying out installation, the CCI Internal Baying & CCM Corner Baying Brackets provide you with simple and rapid click-in fixing to configure your enclosures.


Quick Fixing Profile System


With pre-assembled brackets in the CLPF profile system you can reduce your assembly time by up to an amazing 80%! The 40mm wide x 25mm high profile is designed to be mounted in all directions on the frame of the enclosure and is installed with a simple click-in. The system also allows brackets to pivot and is capable of carrying weights up to 1000N.






Additional Mounting Solutions Where You Need Them

Being fixed directly on to the enclosure frame, CLPK Click-in mounting profiles require no additional brackets and can be installed using the interior hole pattern of your floor standing enclosure.

They can be fixed in all directions increasing the enclosure’s interior profiles, easily allowing the swift mounting of additional accessories and electrical components, just where you need them.




Have a chat with TLA today about how nVent Hoffman’s Click-In system
can save you time and money.
