WEIDMULLER TERMINAL BLOCKS

Terminal blocks have to withstand a great deal – day in and day out. In addition to being robust and reliable, they have to be clearly arranged and easy to use. Safe and reliable connections are crucial, especially under harsh conditions, such as those encountered in the process industry.

Any choice of connection technology very much depends on the application in question. Whether you opt for a screw variant, a spring variant or our innovative PUSH IN technology, our proven Weidmüller connection systems and the comprehensive Klippon® Connect product range allow you to complete all applications in the panel efficiently and flexibly.




Spring connection with PUSH IN Technology

PUSH IN Technology



Weidmuller Tension Clamp Technology

Tension Clamp Technology

Weidmuller Clamping Yoke Technology

Clamping Yoke Technology

Weidmuller Stud Technology

Stud Technology

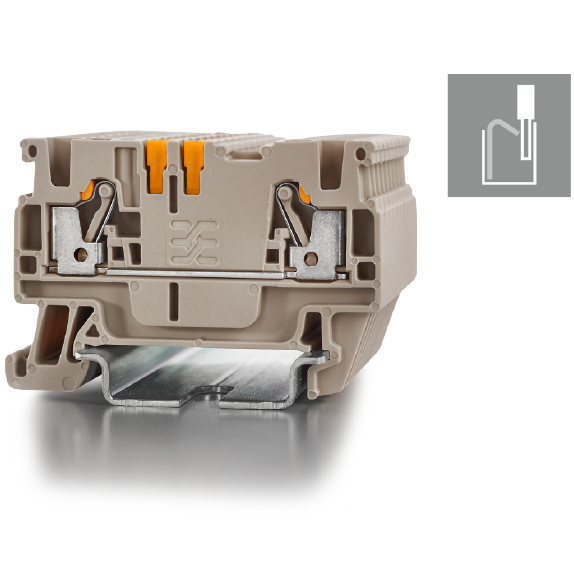

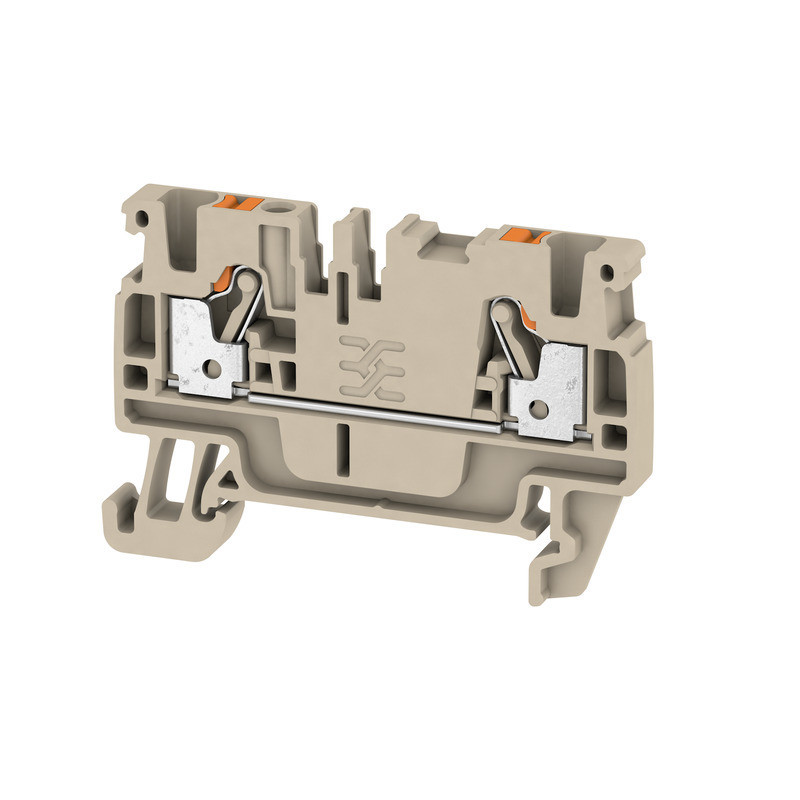

Spring Connection with PUSH IN Technology

The innovative PUSH IN technology reduces the amount of time you spend on wiring, to a minimum. Direct insertion guarantees high conductor pull-out forces and simple handling for all conductor types.

The A Series is available in 1, 2 and 3 tier configurations from 1.5mm to a max size of 16mm.




View the A-Series range of Weidmuller Terminals.


1521680000

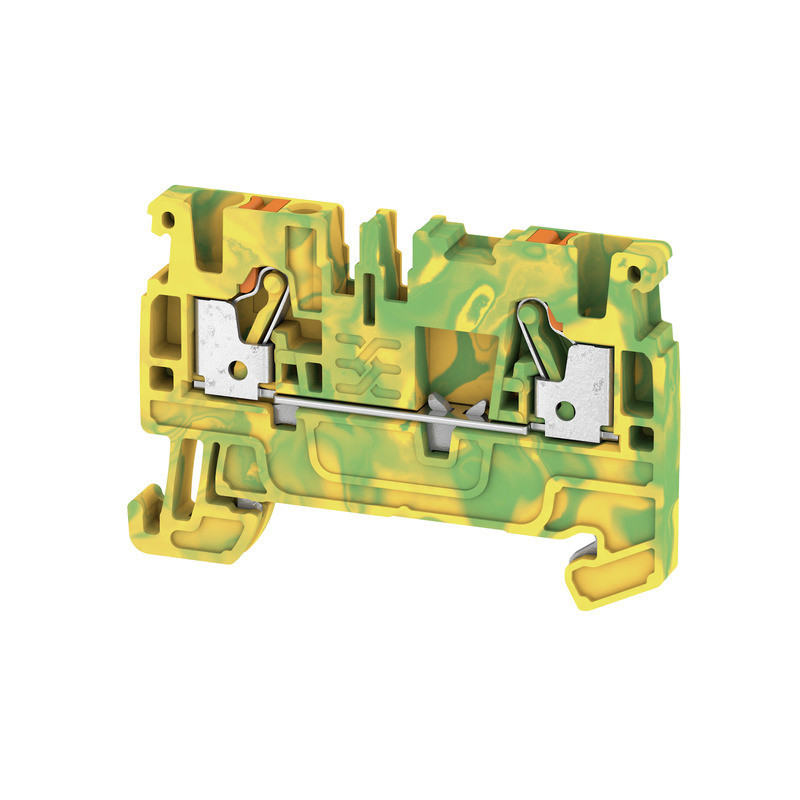

Push In, 2.5mm, 2 Conductor, G/Y

1521670000

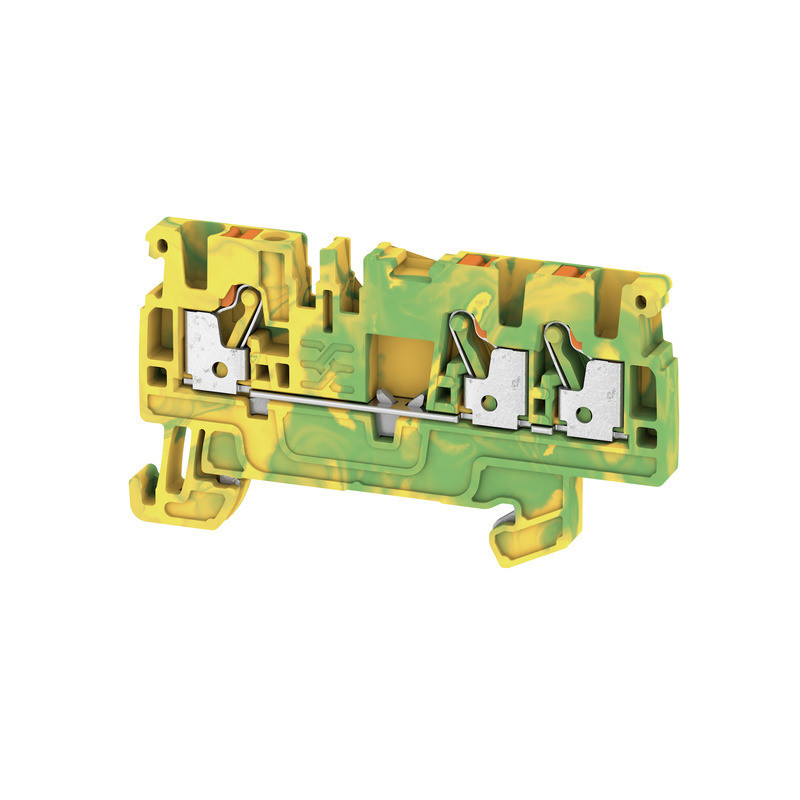

Push In, 2.5mm,  3 Conductor, G/Y

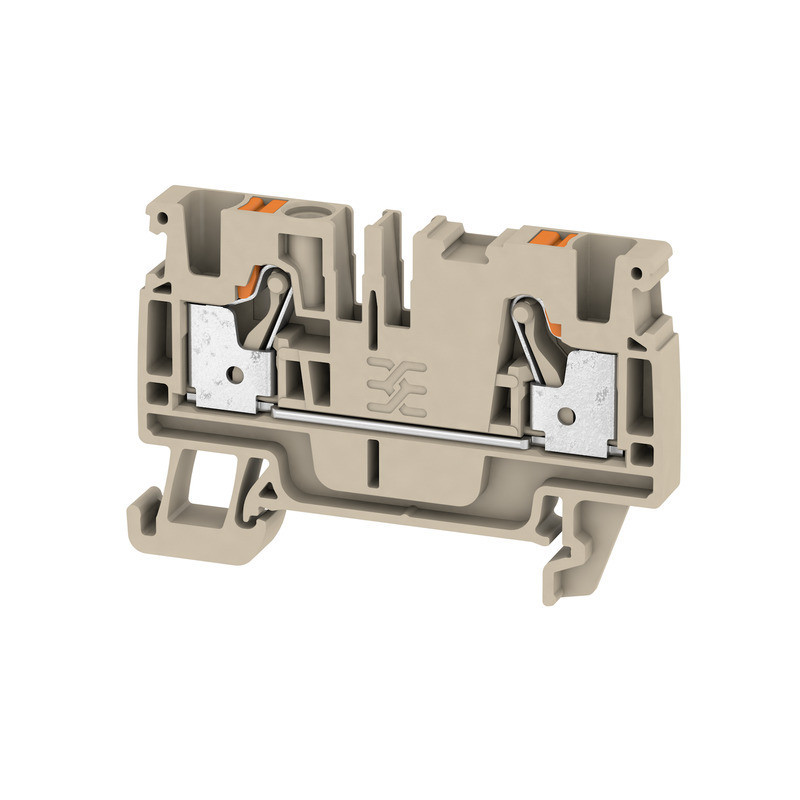

2051180000
Push In, 4.0mm, 2 Conductor, Dark Beige






Spring Clamp Connection with Tension Clamp Technology

Tension clamp technology is a universal contact system for all common conductor connection types. Its fantastic level of flexibility makes the tension clamp a profitable alternative connection.

The standard range of feed through terminals are available in 1, 2, 3 and 4 tiers from 1.5mm to 35mm.

View the Z Series Tension Clamp Range of Weidmuller Terminals.



Weidmuller Tension Clamp Lock Terminals


1608510000

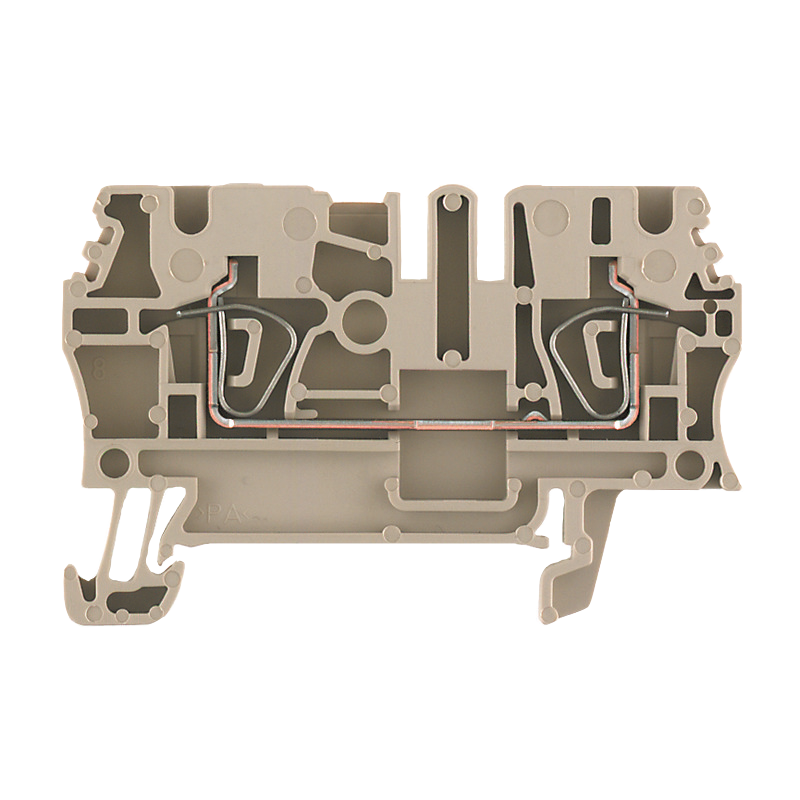

ZDU 2.5mm Feed-through terminal block
1683390000

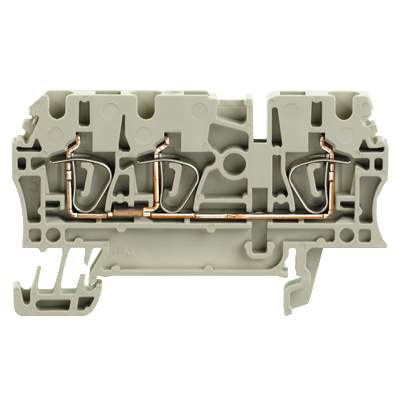

ZDU 2.5/3AN GR Feed-through terminal block
1608570000

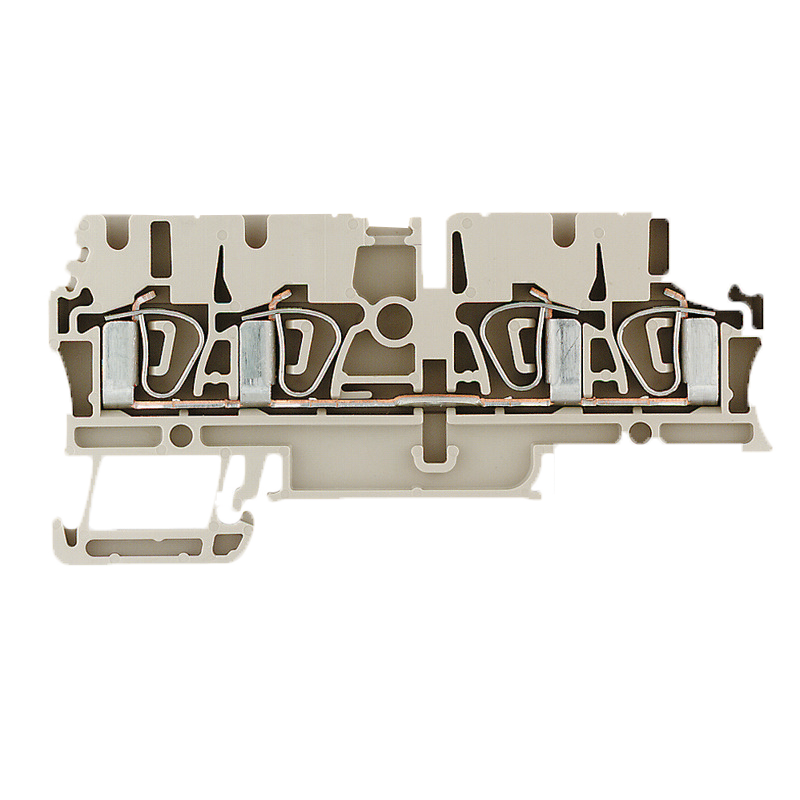

ZDU 2.5/4AN Feed-through terminal block
1608640000

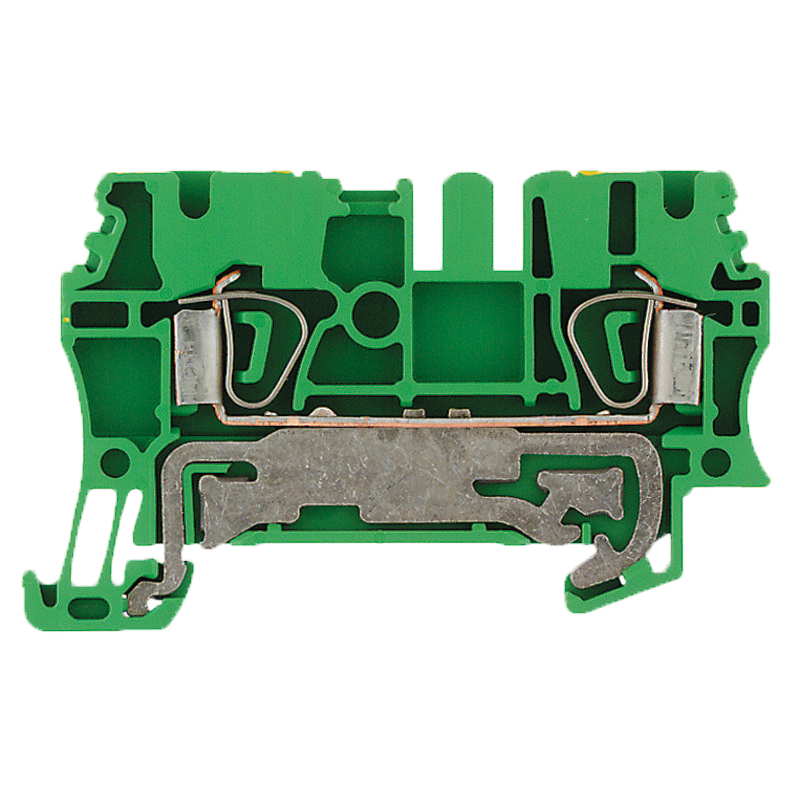

ZPE 2.5 Earth terminal clamp
1674300000

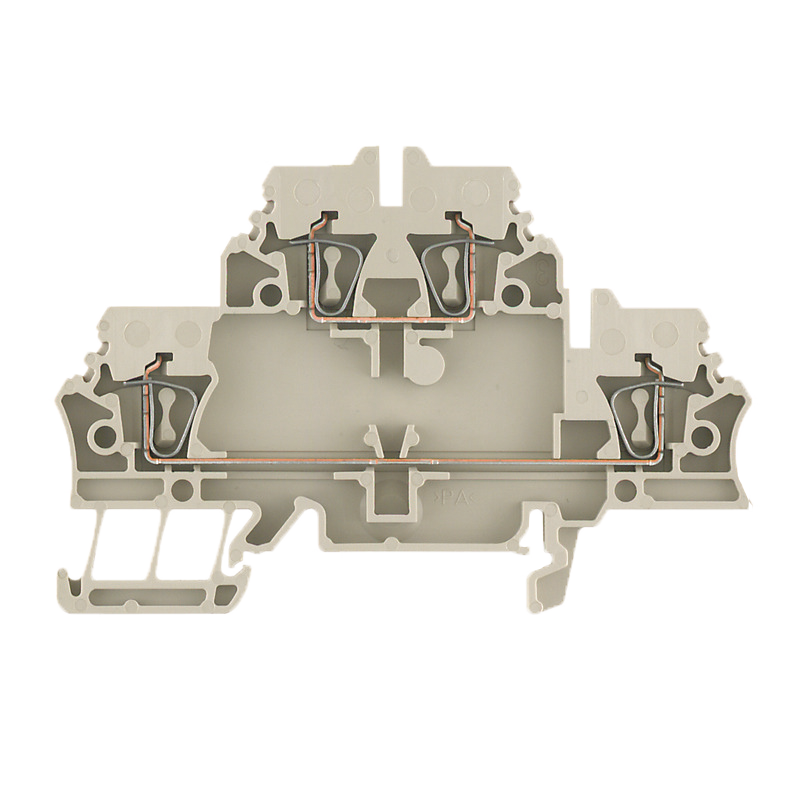

ZDK 2.5 Feed-through terminal block
1763180000

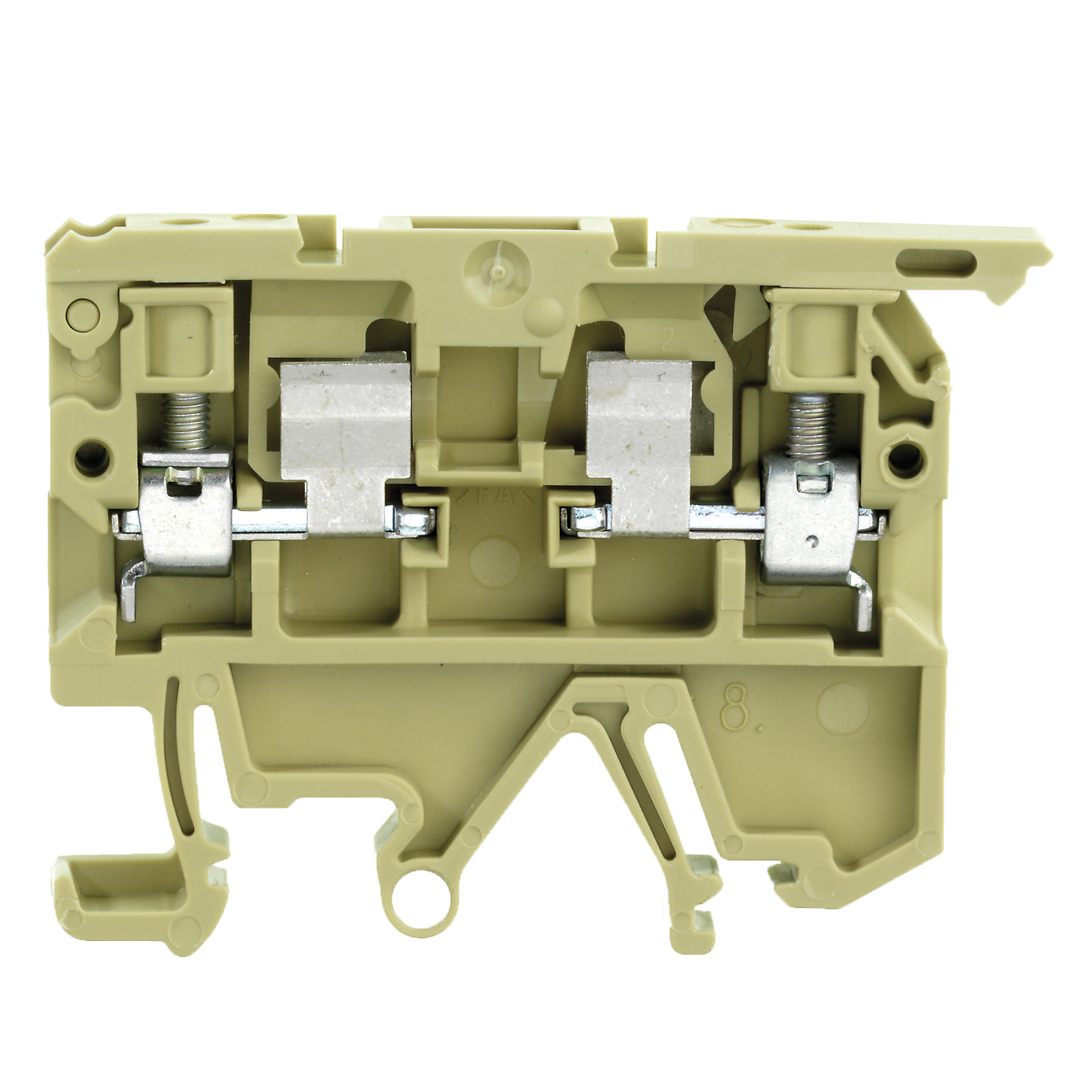

ZDL 2.5/SI/DU Fuse Terminal block

1763180000






Klippon® Connect with clamping yoke Technology

Klippon® Connect with Clamping Yoke Technology

The high reliability and variety of designs of the terminal blocks with clamping yoke connections make planning easier and optimises operational safety. Klippon Connect provides a proven response to a range of different requirements.

View the W Series & SAK Range of terminals from Weidmuller





0380460000

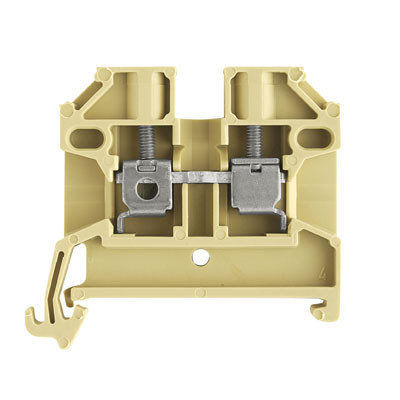

SAK2.5/35 Screw Clamp Terminal, Beige, 2.5mm

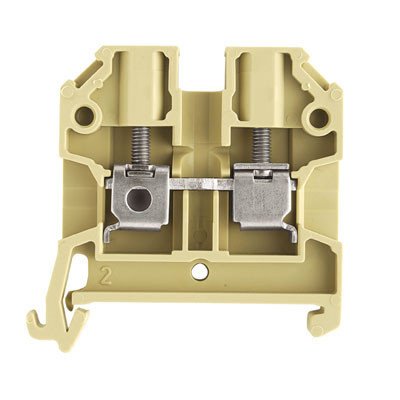

0443660000
SAK4/35 Screw Clamp Terminal, Beige, 4.0mm

102000000

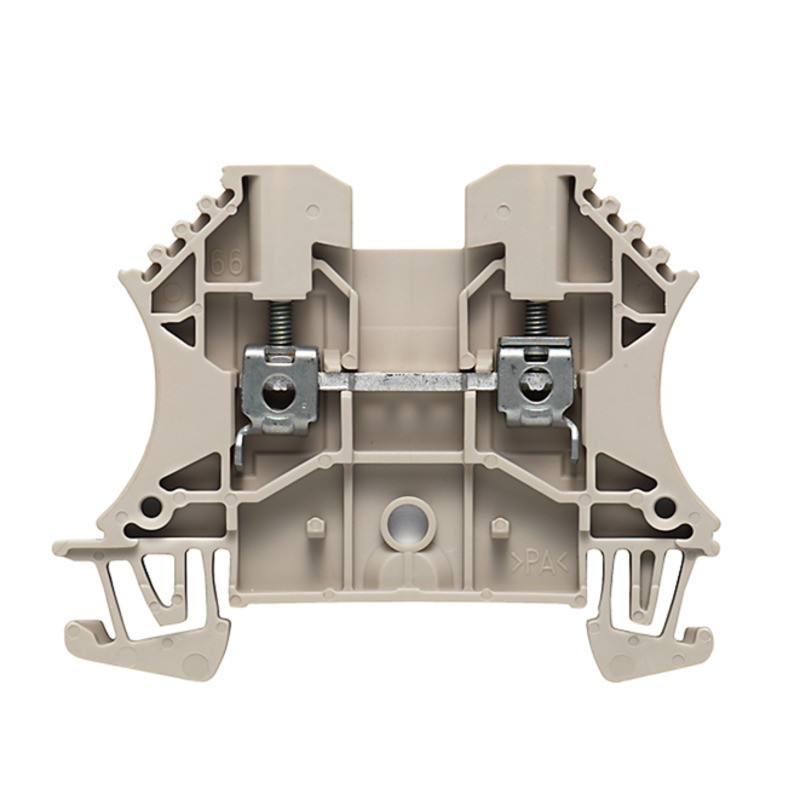

WDU2.5 Feed-through terminal block

0527660000

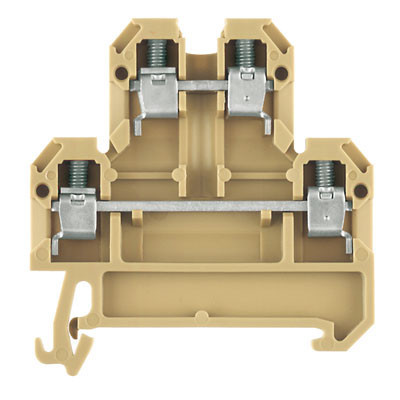

DK Feed-through Double Deck Screw Clamp Terminal, Beige, 4.0mm

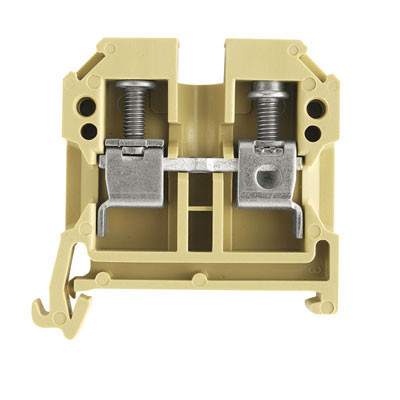

0380560000
SAK6/35PA Screw Clamp Terminal, Beige, 6.0mm

1021500000

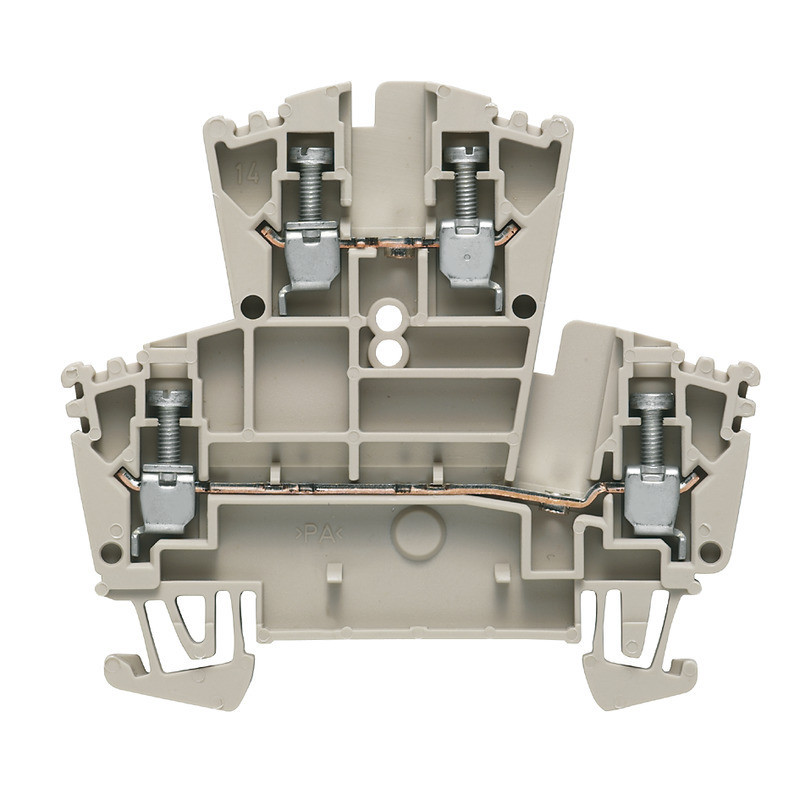

WDK2.5 Disconnect terminal block

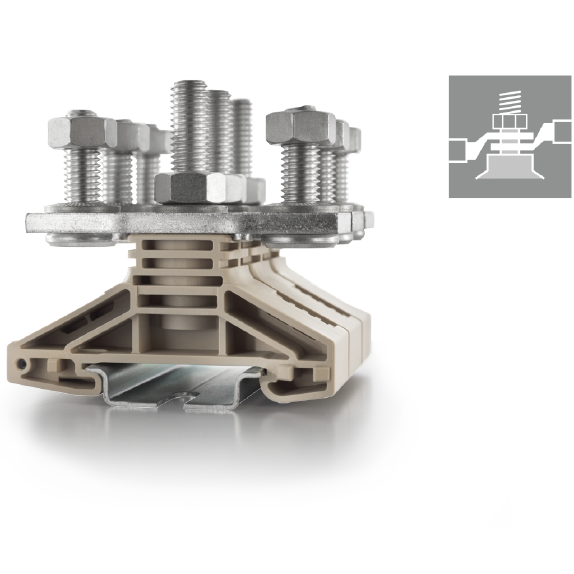

Klippon® Connect with Stud Technology

Weidmuller stud terminals are an established, robust connection alternative for particularly harsh environments. the extensive accessories and quality workmanship ensure high productivity in planning and installation whilst also offering sustainable safety in operation.

View the WF/WFF Series & the SRL Series of Stud Technology Terminals.


1028300000

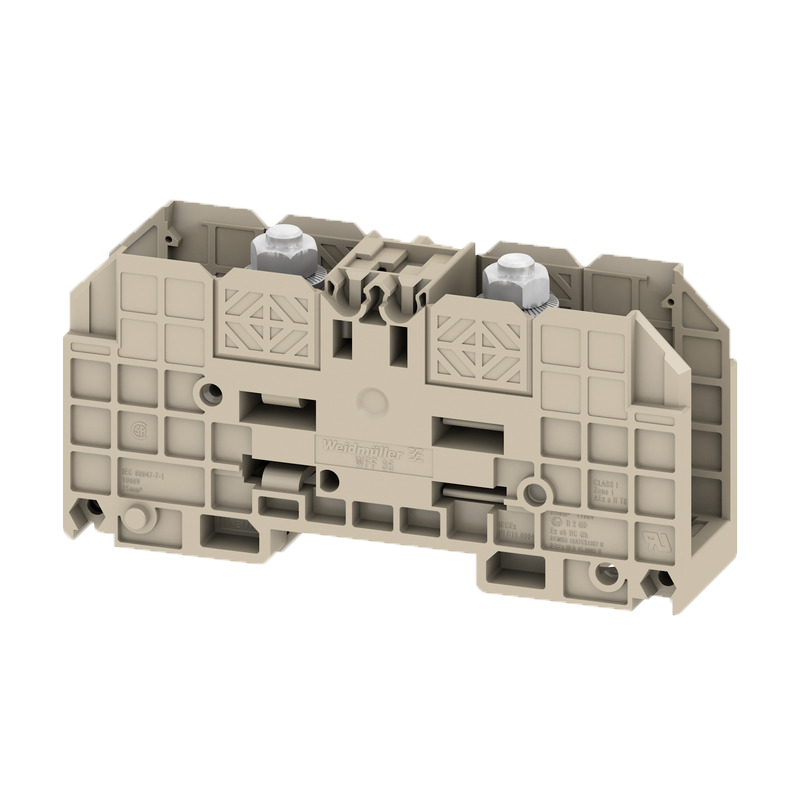

WFF35 Double Stud Terminal Block

1028400000

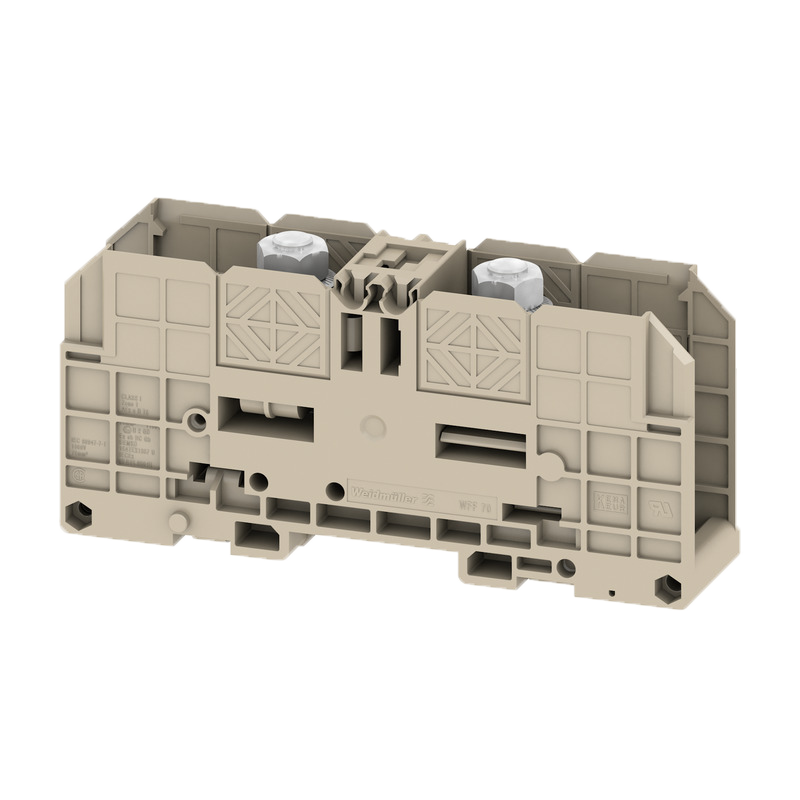

WFF70 Double Stud Terminal Block 70mm

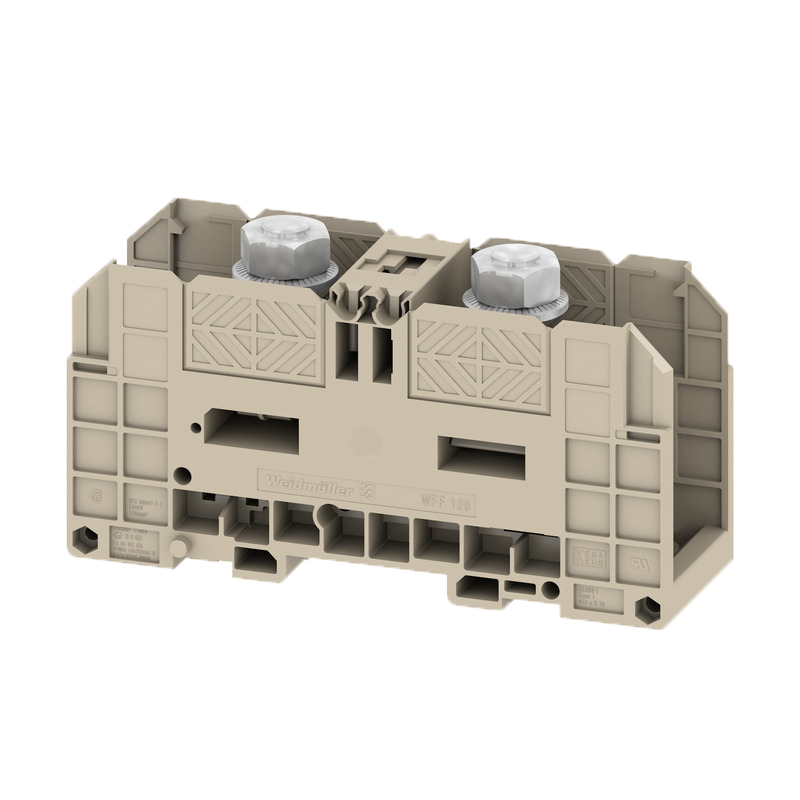

1028500000
WFF120 Double Stud Terminal Block 120mm

1028600000
WFF185 Double Stud Terminal Block 185mm

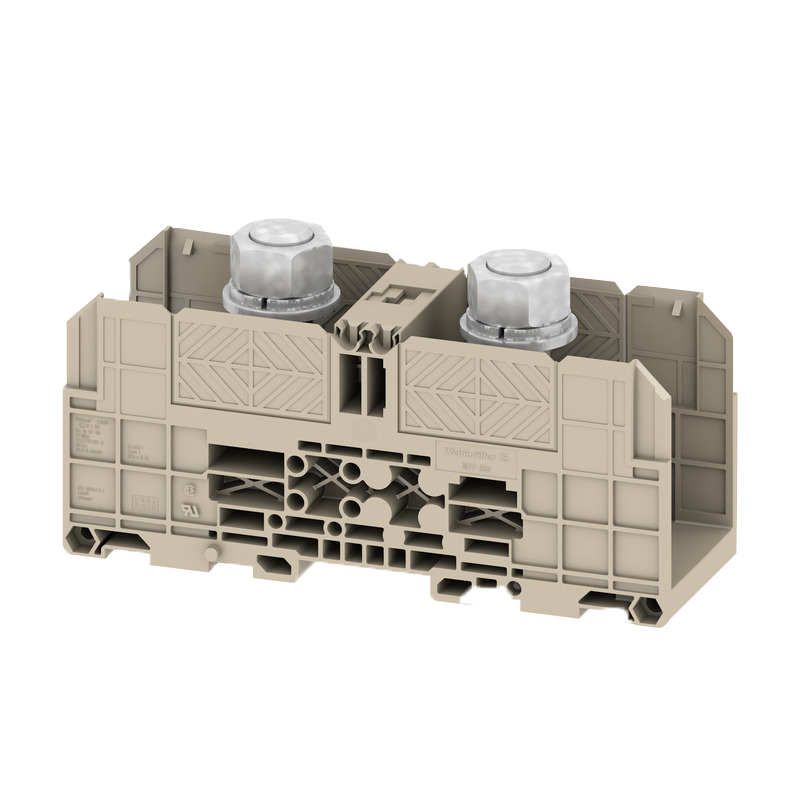

1028700000
WFF300 Double Stud Terminal Block 300mm






Produce Faster with Higher Flexibility & Efficiency

Todays market confronts you with difficult challenges in mechanical and plant engineering in addition to control panel manufacture. The requirement for specially designed products is becoming more elaborate and complex while price pressures, lead times and last minute design changes become the norm.

To meet the growing demands of the market you need highlight efficient planning and manufacturing process. You have to be sure the products delivered are 100 reliable and Weidmuller offers this everytime. Browse the the full Weidmuller terminal block range or download the brochures below to help with your product selection. Alternatively call us on 01159 893 999 to speak to a member of our technical team.








Request A Weidmuller Sample Pack
