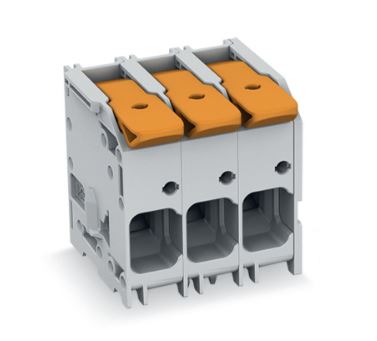

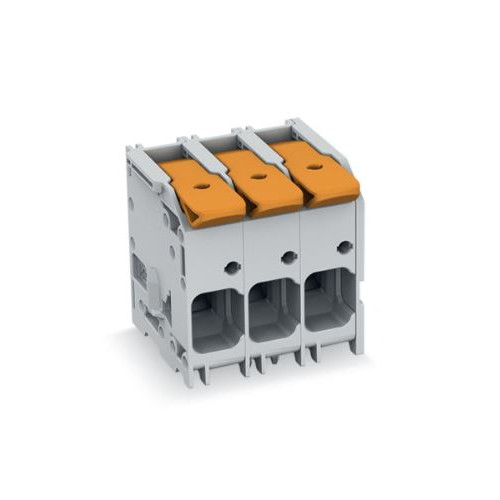

This PCB terminal block (item number 2616-1102/020-000) is designed for easy and secure connections. It is perfect for custom installations with different mounting types. Rated current and voltage are key factors to consider when selecting a PCB terminal block, as they determine the product's suitability for different applications. This product has a rated voltage of 1000V and a rated current of 76A, making it suitable for high-load applications. Strip lengths must be between 18mm and 20mm when connecting conductors to this PCB terminal block. This product features one conductor terminal and utilizes Push-in CAGE CLAMP®. Push-in CAGE CLAMP® connection technology is ideal for connecting all conductor types. It allows direct insertion of both solid and fine-stranded conductors with ferrules without the need for tools—all thanks to its pluggable design. The dimensions are 22.8 x 37.2 x 32mm (width x height x depth). This PCB terminal block is suitable for conductor cross sections ranging from 0.75mm² to 16mm². Up to two potentials / two poles can be connected to this terminal strip using two clamping points on one level. The contacts are made of electrolytic copper (ECu), the gray housing is made of polyamide (PA66) for insulation, and the clamping spring is made of chrome-nickel spring steel (CrNi). The contact surface is coated with tin. A lever is used to operate this PCB terminal block. The PCB terminal block is designed for THT soldering. The conductor is designed to be inserted into the board at an angle of 0°.. The solder pins are organized over the entire terminal strip (staggered) and are 1.2 x 1.2mm cross-section and 4 mm in length. Each potential has three solder pins.
