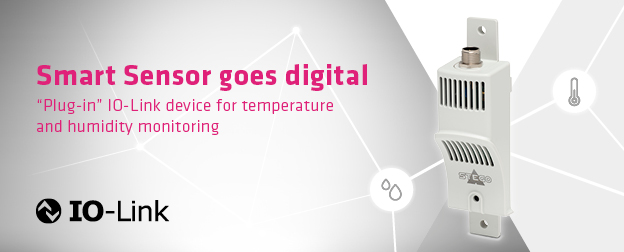

Stego Smart Sensor CSS 014 IO-Link

Smart Sensor Goes Digital – IO Link Monitoring of Temperature and Humidity


Intelligent, bidirectional and digital concepts are becoming more and more important for customers. As a Thermal Management expert, Stego are aware of these needs and introduce to you their latest digital product
Smart Sensor CSS 014 IO-Link. The Smart Sensor CSS 014 IO-Link measures temperature and humidity and can easily and accurately be integrated in (remote) monitoring or predictive maintenance concepts.

FEATURES SMART SENSOR CSS 014 IO-Link
  • Digital interface according to the IO-Link protocol
  • Small dimensions (140 x 40 x 38 mm)
  • DIN clip and screw mounting
  • Connection via 3-pole standard cable (unshielded) with M12 plug
  • Wide measuring range for temperature and humidity (-40 to +80 °C / 0 to 100 % RH)
  • Housing IP20, Sensor IP57
In conjunction with an IO-Link master, the Smart Sensor CSS 014 IO-Link needs to be set up once. The technical term for this procedure is parameterization. The Smart Sensor provides temperature and humidity values according to its parameterization, and in addition offers so-called event bits – for example when defined temperature or humidity limits are exceeded. Extended diagnostics data and device information are also available due to its internal data storage.

The digital Smart Sensor CSS 014 is not only suitable for installation in enclosures or control cabinets, it can also find use in a variety of applications.

Please click here for in-depth technical specifications.


For further information or to order please contact our Sales Team:
Tel. 0115 9893 999. Email: sales@tlauk.net
