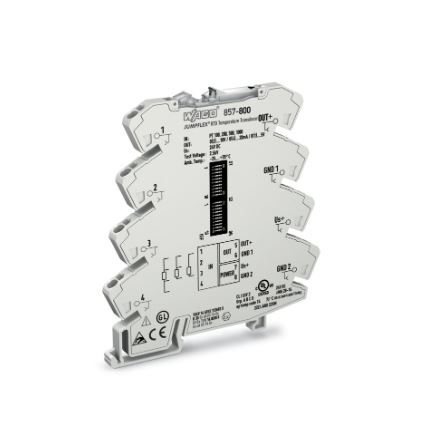

Wago, 857-800, 857 Series, 6mm Width, Temperature Signal Conditioner For RTD Sensors, Current & Voltage Output Signal, 24V DC, Configuration Via DIP Switch,

WAGO's temperature signal conditioner records Pt100, Pt200, Pt500, and Pt1000 sensors, as well as resistors up to 4.5 kOhm, converting the temperature signal into a standard analog signal at the output.

Features:

• For Pt100, Pt200, Pt500 and Pt1000 sensors, as well as resistors up to 4.5 kOhm
• 2-, 3- and 4-wire connection technology
• Calibrated measurement range switching
• Detects a sensor wire break/short circuit
• Detects measurement range underflow/overflow
• Clipping capability for analog signal limitation to output end values
• 3-way electrical isolation with 2.5 kV test voltage
