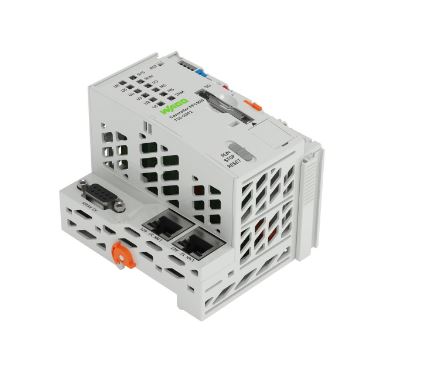

The PFC300 Controller is a compact controller designed for the modular WAGO I/O System. In addition to network and fieldbus interfaces, it supports digital and analog modules as well as specialty modules from the 750/753 Series. Two Ethernet interfaces with an integrated switch enable line topology wiring or communication across two separate networks in distinct modes. An integrated Webserver provides user configuration options, while displaying PFC300 status information. In addition to the process industry and building automation, typical applications for the PFC300 include standard machinery and equipment control – such as packaging, bottling, and manufacturing systems, as well as textile, metal, and wood processing machines.
Key Benefits:
- Programmable per IEC 61131-3
- Programmable via CODESYS V3.5
- Direct connection of WAGO I/O Modules
- 2 x ETHERNET (configurable), RS-485
- Operating system: Linux with PREEMPT_RT patch
- Configuration via CODESYS or Web-Based Management user interface
- Maintenance-free
