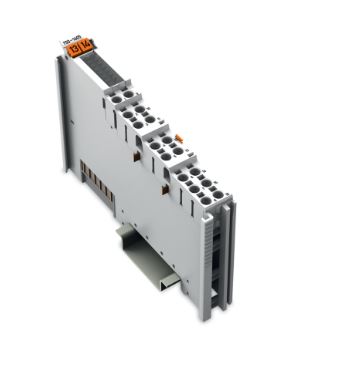

This potential multiplication module provides 24V to the inputs in combination with the 750-1405 and 750-1406 16-Channel Input Module (also suitable for 8-channel input modules with with a single wire connection).

This eliminates the need for additional DIN-rail-mount terminal blocks.

The 24V supply and 0V potential are derived from the internal power jumper contacts of an adjacent upstream I/O module. A connection of the potentials to the downstream I/O modules is made automatically via the power jumper contacts when snapping the I/O modules together. The 24V power is provided to all sixteen field-side Push-in CAGE CLAMP^® connections and the 0V potential passed through without being used by the module.

An operating tool with a 2.5mm blade (210-719) is required to open the Push-in CAGE CLAMP^® connections.
