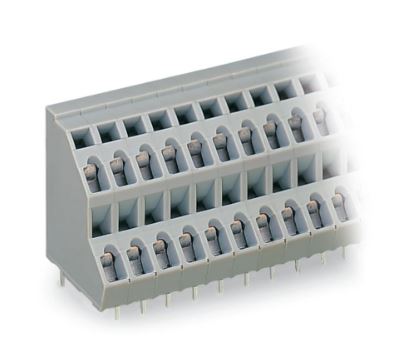

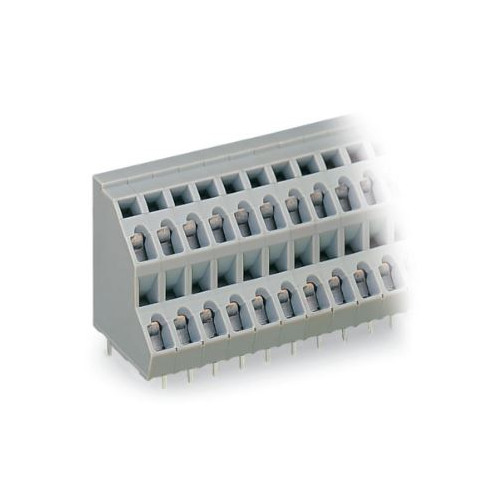

Our PCB terminal block (item number 736-216) makes connecting wires quick and easy. It is a universal connector that can be used almost anywhere, for example, as a pluggable PCB connector, panel feedthrough header, connector for rail-mount terminal blocks, or a floating connector for different mounting methods. Our PCB terminal block is rated for 320V and is designed to handle a rated current of up to 21A. It can therefore be used in high-load applications. Conductors should only be connected to this PCB terminal block if their strip length is between 5mm and 6mm. This product features one conductor terminal and utilizes CAGE CLAMP®. Our reliable and maintenance-free CAGE CLAMP® connection makes it easy to connect all conductor types without having to prepare the conductor. For example, you don't need to crimp ferrules. Dimensions: 81.1 x 30.6 x 21mm (width x height x depth). Depending on the conductor type, this PCB terminal block is suitable for conductor cross sections ranging from 0.08mm² to 2.5mm². It features two levels and thirty-two clamping points that you can use to connect thirty-two potentials / 32 poles. The clamping spring is made of chrome-nickel spring steel (CrNi), the contacts are made of electrolytic copper (ECu), and the gray housing is made of polyamide (PA66) for insulation. Tin is used for coating the contact surfaces. An operating tool is used to operate this PCB terminal block. THT is used to solder the PCB terminal block. The conductor is designed to be inserted at an angle of 45°.. The solder pins, which are 0.7 x 0.7mm in cross-section and 4mm long, are set out within the terminal block (staggered). There are one solder pin per potential.
