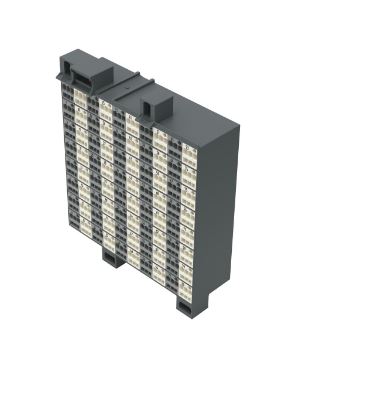

Enjoy easy electrical installations with these matrix patchboards (item number 726-821). Conductors can only be connected to these matrix patchboards if their strip length is between 8mm and 10mm. Featuring conductor terminals along with CAGE CLAMP®, this connector is highly versatile. Our CAGE CLAMP® connection provides a dependable and maintenance-free way to connect all types of conductors. You do not need to prepare the conductor in any way, such as crimping ferrules. Dimensions: 107.9 x 132 x 36.5mm (width x height x depth). Depending on the type of conductor, these matrix patchboards are designed for conductor cross sections ranging from 0.08mm² to 1.5mm² on one side and for conductor cross sections from 0.08mm² to 2.5mm² on the other side. The dark grey housing is made of polyamide (PA66) for insulation.
