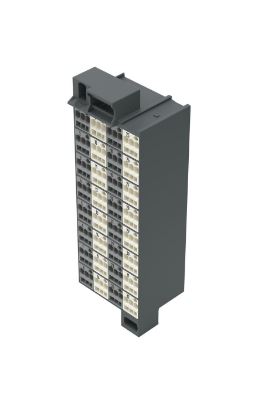

Seamless electrical installations are guaranteed with these matrix patchboards (item number 726-321). Ensure that the strip lengths are between 8mm and 10mm when connecting conductors to these matrix patchboards. Featuring conductor terminals along with CAGE CLAMP®, this connector outperforms the competition. Our CAGE CLAMP® connection offers a convenient and maintenance-free way to connect all types of conductors. You do not need to prepare the conductor in any way, such as crimping ferrules. Dimensions: 34.6 x 132 x 36.5mm (width x height x depth). Depending on the conductor type, these matrix patchboards are designed for conductor cross sections ranging from 0.08mm² to 1.5mm² on one side and for conductor cross sections from 0.08mm² to 1.5mm² on the other side. The dark grey housing is made of polyamide (PA66) for insulation.
