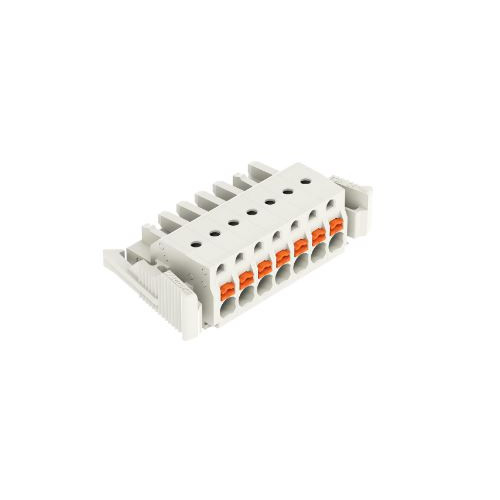

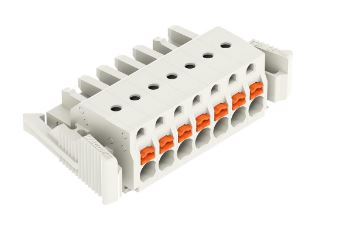

This female connector/socket (item number 2721-107/037-000) is designed for smooth electrical installation. Rely on proven reliability when designing your device: PCB connectors open up a wide range of application possibilities. This female connector/socket requires a stripping length of between 10 and 11mm for the conductor connection. This product uses Push-in CAGE CLAMP® technology. Push-in CAGE CLAMP® is the maintenance-free universal connection for all conductor types with the added benefit of direct plugging: Push-in. Rigid conductors as well as fine-stranded conductors with ferrules can be plugged in directly without tools. Pre-treatment of the conductors, e.g., by crimping on ferrules, is not necessary. The dimensions are (width x height x depth) (51.7 x 15 x 29.8mm). This female connector/socket is suitable for conductor cross-sections from 0.2mm² to 2.5mm², depending on the conductor type. Tin plating was used for the contact surface. This female connector/socket is actuated by a push-button. WAGO's MCS - "Multi Connection System" comprises a total of seven families with pitches from 2.5mm to 10.16mm and offers a wide range of application possibilities with a conductor cross-section range from 0.08 to 25mm².
