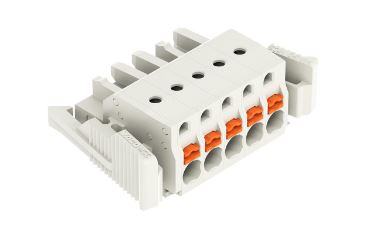

The female connector/socket has the article number 2721-105/037-000 and enables error-free electrical installation. Rely on proven safety when designing your device: PCB connectors offer a variety of application options. This female connector/socket requires stripping with lengths between 10 and 11 mm for the conductor connection. This product uses Push-in CAGE CLAMP® technology. Push-in CAGE CLAMP® connection technology is the universal connection for all conductor types with the added benefit of direct plugging. Rigid conductors as well as fine-stranded conductors with ferrules can be plugged directly into the terminal point without the need for tools. The dimensions are width x height x depth (41.7 x 15 x 29.8mm). Depending on the conductor type, the female connector/socket is designed for conductor cross-sections from 0.2mm² to 2.5mm². The contact surface is tin. This female connector/socket is activated via a push-button. WAGO's MCS - "Multi Connection System" comprises a total of seven families with pitches from 2.5mm to 10.16mm and offers a wide range of application possibilities with a conductor cross-section range from 0.08 to 25mm².
