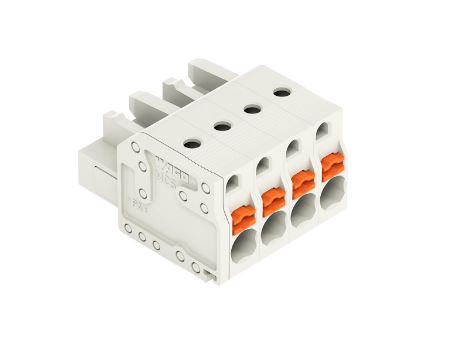

The female connector/socket (item number 2721-104/026-000) enables clean electrical installation. Our printed circuit board connectors give you the greatest possible flexibility for different mounting types. This female connector/socket requires a stripping length of between 10 and 11mm for conductor connection. This product uses Push-in CAGE CLAMP® technology. Push-in CAGE CLAMP® is the maintenance-free universal connection for all conductor types with the added benefit of direct plugging: Push-in. Rigid conductors as well as fine-stranded conductors with ferrules can be plugged in directly without tools. Pre-treatment of the conductors, e.g., by crimping on ferrules, is not required. The dimensions are width x height x depth (21.5 x 15 x 25.6mm). This female connector/socket is suitable for conductor cross-sections from 0.2mm² to 2.5mm², depending on the conductor type. The contact surface is tin. This female connector/socket is actuated by a push-button. WAGO's MCS - "Multi Connection System" comprises a total of seven families with pitches from 2.5mm to 10.16mm and offers a wide range of application possibilities with a conductor cross-section range from 0.08 to 25mm².
