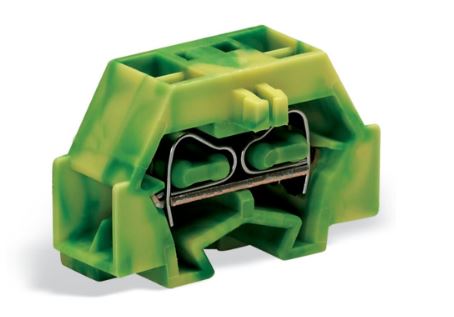

This ground terminal block (item number 260-337) is designed for quick and easy connections. Our mini rail-mount terminal blocks are perfect for working in small spaces thanks to their compact design. With various mounting and actuation options, they offer complete flexibility. Rated current and voltage are key factors to consider when choosing a mini rail-mount terminal block, as they determine the product's suitability for different applications. This product has a rated voltage of 400V and a rated current of 18A. Strip lengths must be between 8mm and 9mm when connecting conductors to this ground terminal block. Featuring conductor terminals along with CAGE CLAMP®, this connector outperforms the competition. Our tried-and-tested universal connection known as CAGE CLAMP® is the industry standard for connection technology and electrical interconnections. Dimensions: 8 x 17 x 25.1mm (width x height x depth). This ground terminal block is suitable for conductor cross sections ranging from 0.08mm² to 1.5mm². It has one level. The single potential can connect using the four clamping points The green-yellow housing is made of polyamide (PA66) for insulation. An operating tool is used to operate this mini rail-mount terminal block. You can connect copper conductors thanks to side-entry wiring.
