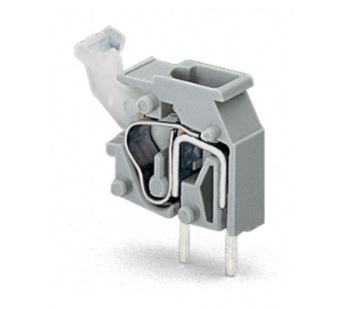

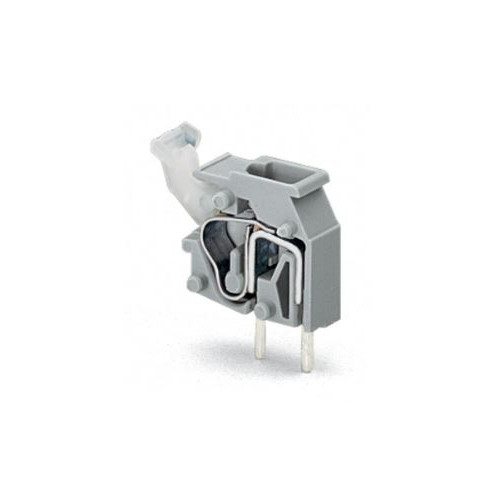

Connect conductors quickly and safely with this PCB terminal block (item number 255-401). It offers the flexibility needed for different mounting types. Our PCB terminal block is rated for 320 V and is designed to handle a rated current of up to 24A. It can therefore be used in high-load applications. Conductors should only be connected to this PCB terminal block if their strip length is between 5mm and 6mm. This product features one conductor terminal and utilizes CAGE CLAMP®. Our tried-and-tested universal connection known as CAGE CLAMP® is industry-leading when it comes to connection technology and electrical interconnections. Dimensions: 7.8 x 18.2 x 18.3mm (width x height x depth). This PCB terminal block is suitable for conductor cross sections ranging from 0.08mm² to 2.5mm². It has one level. The single potential can connect one pole using one clamping point The clamping spring is made of chrome-nickel spring steel (CrNi), the contacts are made of electrolytic copper (ECu), and the gray housing is made of polyamide (PA66) for insulation. Tin is used for coating the contact surfaces. A push-button is used to operate this PCB terminal block. THT is used to solder the PCB terminal block. Insert the conductor into the board at an angle of 90°.. The solder pins are organized within the terminal block (in-line). They are 0.7 x 0.7mm and 4mm in length. Each potential has two solder pins.
