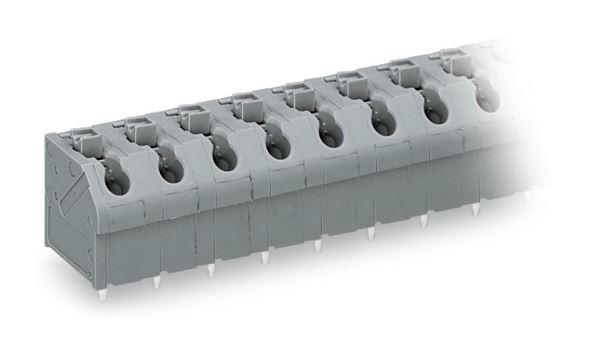

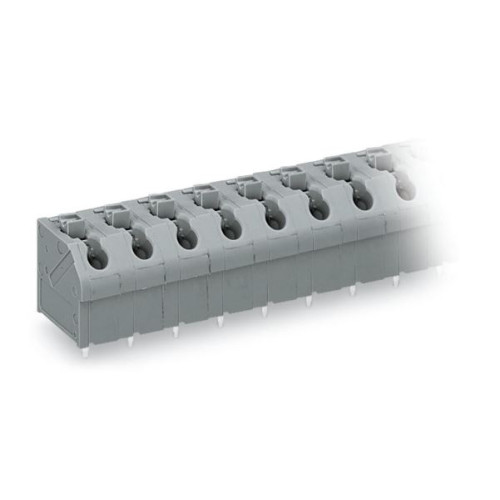

Wago, 250-603, 250 Series, Grey, 1.5mm², 3-Pole PCB Terminal Block, With Push-button, Push-in CAGE CLAMP®, Pin Spacing 7.5mm, 630V AC, 17.5 Amps,

This PCB terminal block (item number 250-603) is designed for easy and secure connections. You can count on tried and tested safety with these PCB terminal blocks, perfect for a wide range of applications when designing your devices. This PCB terminal block has a rated voltage of 630V and can handle currents up to 17.5A, making it ideal for high-load applications. Conductors should only be connected to this PCB terminal block if their strip length is between 9mm and 10mm. This product features one conductor terminal and utilizes Push-in CAGE CLAMP®. Our Push-in CAGE CLAMP® is a universal, maintenance-free connection solution for all conductor types, boasting a key feature: both solid and fine-stranded conductors with ferrules can be directly inserted without the need for tools or any preparation, such as crimping the ferrule. The item's dimensions are 21.5 x 20.5 x 13mm (width x height x depth). Depending on the type of conductor, this PCB terminal block is ideal for conductor cross sections ranging from 0.5mm² to 1.5mm². Up to three potentials / three poles can be connected to this terminal strip using three clamping points on one level. The gray housing is made of polyamide (PA66) for insulation, the contacts are made of electrolytic copper (ECu), and the clamping spring is made of chrome-nickel spring steel (CrNi). Tin is used for coating the contact surfaces. A push-button is used to operate this PCB terminal block. THT is used to solder the PCB terminal block. The conductor is designed to be inserted into the board at an angle of 45°.. The solder pins, which are 0.5 x 0.75mm in cross-section and 4mm long, are set out over the entire terminal strip (in-line). There are one solder pin per potential.
