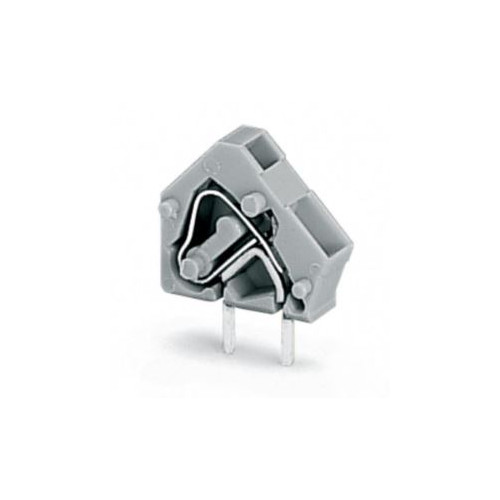

This PCB terminal block (item number 236-742) is designed to connect conductors quickly and easily. It is a universal connector that can be used practically anywhere, for example, as a pluggable PCB connector, panel feedthrough header, connector for rail-mount terminal blocks, or a floating connector for different mounting methods. Our PCB terminal block is rated for 320V and is designed to handle a rated current of up to 24A. As such, it is suitable for high-load applications. Strip lengths must be between 5mm and 6mm when connecting conductors to this PCB terminal block. This product features one conductor terminal and utilizes CAGE CLAMP®. Our celebrated universal connection known as CAGE CLAMP® is industry-leading when it comes to connection technology and electrical interconnections. The item's dimensions are 7.2 x 17 x 14mm (width x height x depth). This PCB terminal block is suitable for conductor cross sections ranging from 0.08mm² to 2.5mm². Up to one potential / one pole can be connected to this terminal block using one clamping point on one level. The dark gray housing is made of polyamide (PA66) for insulation, the contacts are made of electrolytic copper (ECu), and the clamping spring is made of chrome-nickel spring steel (CrNi). Tin is used for coating the contact surfaces. This PCB terminal block is operated with an operating tool. The PCB terminal block is designed for THT soldering. Insert the conductor at a 45° angle.. The solder pins, which are 0.7 x 0.7mm in cross-section and 4mm long, are set out within the terminal block (in-line). There are two solder pins per potential.
