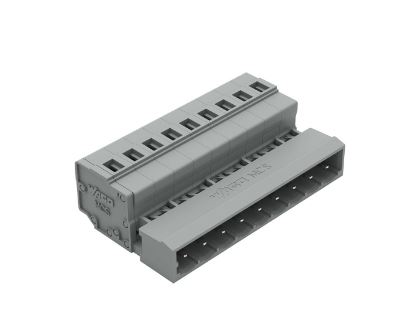

The pin header (item number 231-609) enables seamless electrical installation. Our PCB connectors provide you with a comprehensive connector system that can be used in a variety of ways: as a PCB connector, as a feed-through connector, as a floating connection for various mounting types, or as a connector on terminal blocks. This pin header requires stripping lengths of 8 to 9 mm for conductor connection. This product utilizes CAGE CLAMP® technology. The CAGE CLAMP® universal connection provides you with a reliable and maintenance-free connection technology for connecting all conductor types using a cage clamp. No pretreatment of the conductors, such as crimping on wire end ferrules, is necessary. The dimensions (width x height x depth) are (48.2 x 14.3 x 27.5mm). Depending on the conductor type, this pin header is suitable for conductor cross-sections from 0.08mm² to 2.5mm². Tin was used for the contact surface. This pin header/connector is actuated using an operating tool. WAGO's MCS – "Multi Connection System" – is a versatile connector system for your consistent system wiring. It enables simplified wiring in cable pre-assembly and on devices thanks to two actuation directions for the CAGE CLAMP® variants.
