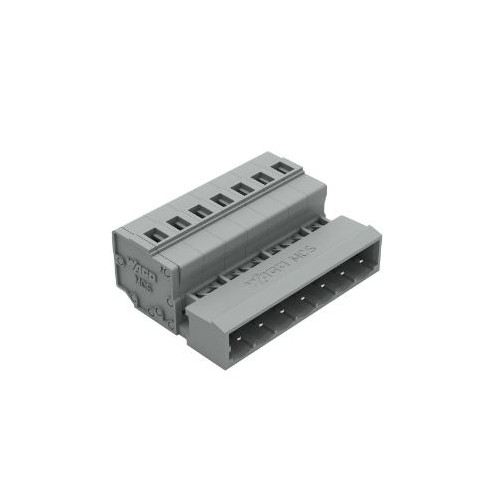

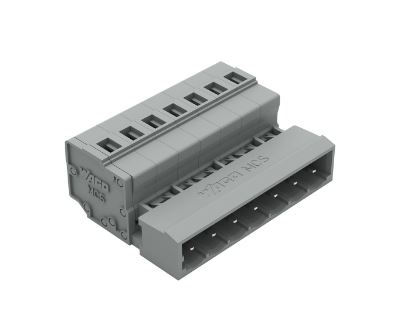

Wago, 231-607, 231 Series, Grey, 1-Conductor, 7-Pole, Male Connector, CAGE CLAMP®, 2.5mm², Pin Spacing 5mm, 320V AC, 12 Amp,

The pin header has the article number 231-607 and enables smooth electrical installation. Our printed circuit board connectors give you the greatest possible flexibility with different mounting types. This pin header requires stripping of insulation with lengths between 8 and 9 mm for the conductor connection. This product uses CAGE CLAMP® technology. The reliable and maintenance-free CAGE CLAMP® universal connection offers the option of connecting all types of conductors with a cage clamp without the need for pre-treatment of the conductors. This eliminates the need to crimp on wire end ferrules. The dimensions are width x height x depth (38.2 x 14.3 x 27.5mm). Depending on the conductor type, this pin header is suitable for conductor cross-sections from 0.08mm² to 2.5mm². Tin has been used for the contact surface. This pin header/connector is actuated using an operating tool. The MCS – "Multi Connection System" from WAGO comprises a total of 7 families with pitches from 2.5mm to 10.16mm and offers a wide range of possible applications with a conductor cross-section range from 0.08 to 25mm².
