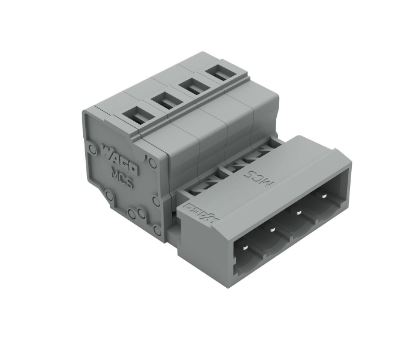

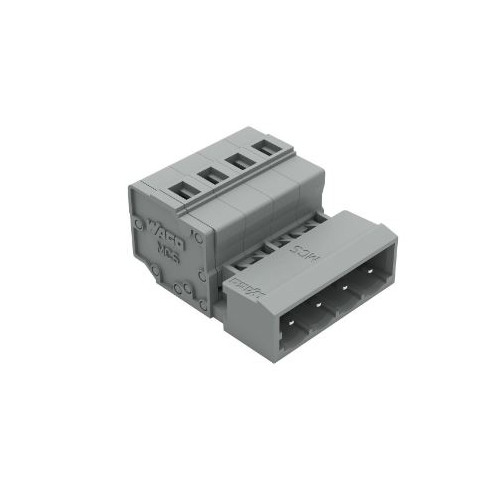

The pin header has the article number 231-604 and enables error-free electrical installation. Rely on proven safety when designing your device: PCB connectors offer a wide range of application possibilities. This pin header requires a stripping length of 8 to 9 mm for the conductor connection. This product uses CAGE CLAMP® technology. The CAGE CLAMP® universal connection provides you with a reliable and maintenance-free connection technology for connecting all conductor types using a cage clamp. No pre-treatment of the conductors, for example, by crimping on wire end ferrules, is necessary. The dimensions are (width x height x depth) (23.2 x 14.3 x 27.5mm). Depending on the conductor type, this pin header is suitable for conductor cross-sections from 0.08mm² to 2.5mm². The contact surface is made of tin. This pin header/connector is actuated using an operating tool. WAGO's MCS – "Multi Connection System" – is a versatile connector system for your consistent system wiring. It enables simplified wiring in cable pre-assembly and on devices thanks to two actuation directions for the CAGE CLAMP® variants.
