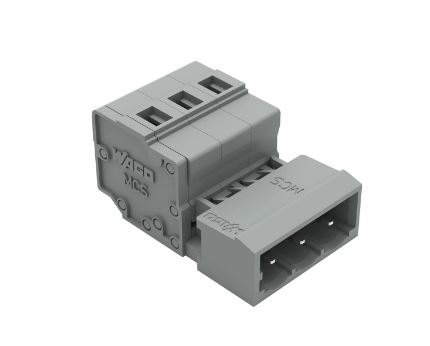

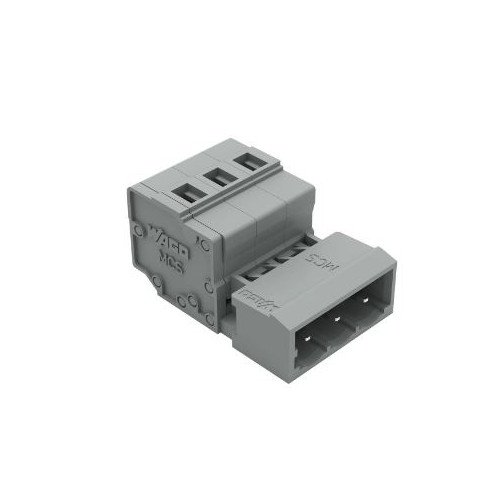

The pin header (item number 231-603) ensures smooth electrical installation. Our PCB connectors provide you with a universal connector system that can be used in a variety of ways: as a PCB connector, as a feed-through connector, as a floating connection for various mounting types, or as a connector on terminal blocks. Stripping lengths of 8 to 9mm are required for conductor connection with this pin header. This product features CAGE CLAMP® technology. The reliable and maintenance-free CAGE CLAMP® universal connection allows all types of conductors to be connected using a cage clamp without the need for any pre-treatment of the conductors. This eliminates the need to crimp on wire end ferrules. The dimensions (width x height x depth) are (18.2 x 14.3 x 27.5mm). Depending on the conductor type, the pin header is suitable for conductor cross-sections from 0.08mm² to 2.5mm². Tin was used for the contact surface. This pin header/connector is operated using an operating tool. WAGO's "Multi Connection System" – MCS – is a versatile connector system with convincing solutions for your applications.
