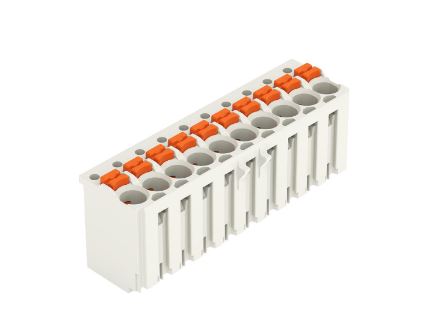

The female connector/socket with the article number 2091-1130 enables smooth electrical installation. Rely on reliable safety when designing your device: PCB connectors give you versatile application possibilities. This female connector/socket requires a stripping length of between 8 and 9 mm for the conductor connection. This product uses Push-in CAGE CLAMP® technology. Push-in CAGE CLAMP® connection technology is the universal connection for all conductor types with the added benefit of direct plugging. Rigid conductors as well as fine-stranded conductors with ferrules can be plugged directly into the terminal point without the need for tools. The dimensions are width x height x depth (35 x 14 x 11.4) mm. This female connector/socket is suitable for conductor cross-sections from 0.2 mm² to 1.5 mm², depending on the conductor type. The contact surface is made of tin. This female connector/socket is actuated using a push button. picoMAX® is the compact connector system with an innovative design. It utilizes the contact force of a single Cr-Ni steel spring for two purposes – both for connecting the conductor and for contacting the connector pin.
