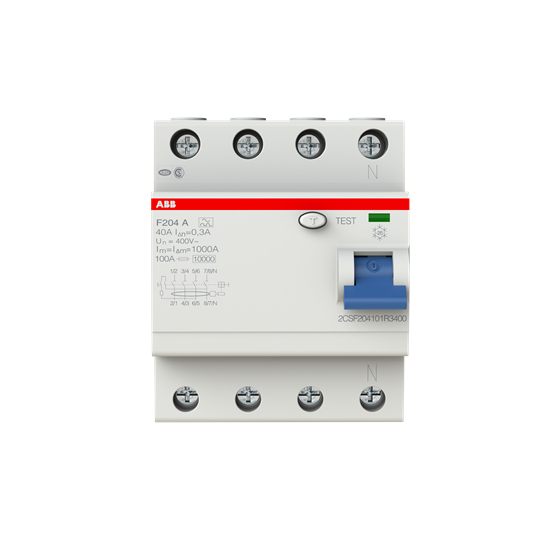

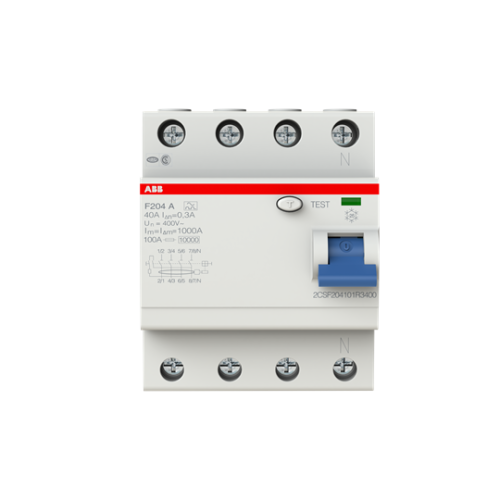

ABB, F204A-40/0.3, 2CSF204101R3400, A Type RCCB, 4 Pole, 40 Amp, 100mA Rated Residual Current Trip

About the ABB F204 A-40/0.3

F204 A-40/0.3, ABB F200 Series, A Type RCCB has all the functionality of the AC type block with the added ability of the detection of pulsating current with DC components. It is used with the S200 series of MCBs. It assures protection against the effects of sinusoidal alternating earth fault currents, protection against indirect contacts and additional protection against direct contacts when selecting 30mA sensitivity. Other trip currents are available in this range. Applications include residential, commercial, industrial.

Trip Type

A

No Of Poles

4 Pole

Rated Current

40 Amp

Rated Residual Current

300mA
