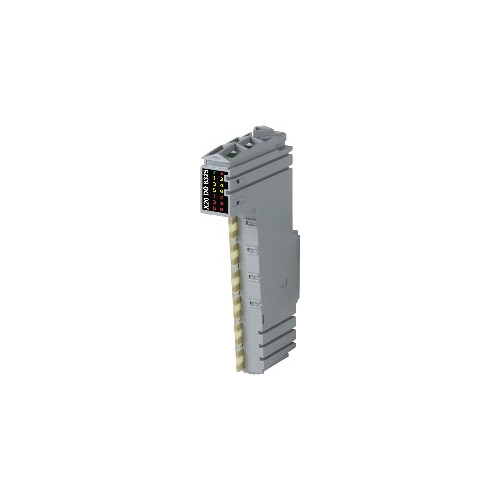

B&R, X20DO6325, X20 Digital Output Module, 6 x Outputs, 24V DC, 0.5 Amp, Source, Open Circuit & Overload Detection, 2-wire Connections

X20DO6325

Description:

• 6 digital outputs
• Source connection
• 2-wire connections
• GND for signal supply
• Integrated output protection
• 1-wire connection type with 6-pin terminal block
• Diagnostic functions (open line, short circuit and overload/overtemperature)
• OSP mode

The module is equipped with six outputs for 1 or 2-wire connections with diagnostic functions. The X20 6-pin terminal block can be used for universal 1-line wiring. Two-line wiring can be implemented using the 12-pin terminal block. The outputs on the module are designed for source connections.
